Mahindra Thar CRDe

by Sandeep Singh Janjua
(Chandigarh, INDIA)

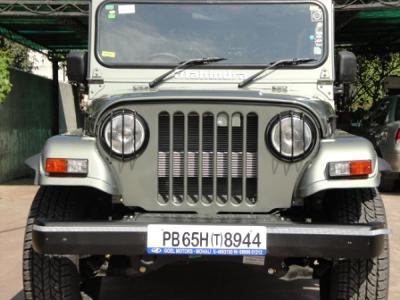

This is the Mahindra Thar CRDe.

Specifications -

Engine: NEF CRDe Turbocharged Intercooled, BS IV

Capacity: 2498 CC

Bore x Stroke: 94 x 90 mm

Power: 77.23 kW

Torque: 247 Nm @ 1800-2000 rpm

Transmission: 5 Speed - Manual

Transfer case (4WD only): Borg Warner - Manual Shift
2 Speed gear reduction-HIGH 1.0:1,LOW 2.48:1

Axle Front: Full Floating Hypoid Ratio 4.3:1; Capacity: 1100 kg

Axle Rear: Semi Floating Hypoid Ratio 4.3:1; Capacity: 1700 kg

Hub Lock: Auto

Minimum turning radius: 5.25 m

Wheelbase: 2430 mm

Suspension: Independent Front Suspension with Torsion & Stabilizer Bar
Semi elliptical leaf springs with tension sides shot-peened

Ground clearance: 200 mm

Approach angle: 46º

Departure angle: 30º

Brakes Front: 113 mm Disc & Caliper
Brakes Rear: 279 drums

Tyres and Wheels: P 235/70 R 16 Tubeless Tyres
6.5 J X 16 Inches (40.64 cms)

Fuel tank capacity: 60 Litres

Dimensions
Front track: 1445 mm
Rear track: 1346 mm
Overall length: 3920 mm
Overall width: 1710 mm
Wheelbase: 2430 mm
Overall height: 1930 mm

Seating Capacity: 7 Seater



Larry's Comment: Thanks for the specs, Sandeep. Is this a 2011 Mahindra Thar?
