My Mahindra CJ340 Jeep

by Dipanjon Konwar
(Guwahati, India)

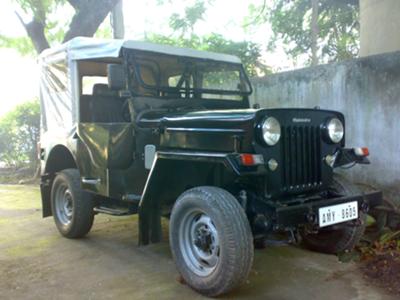

M&M CJ340 Jeep

M&M CJ340 Jeep

My Mahindra & Mahindra (M&M) CJ340 is a Short wheel base (SWB) Jeep, the diesel version of CJ3B, with Peugeot 2, 112 cc XDP4.90 engine and 4-speed KMT90 transmission and T18 2-lever transfer case.

My CJ340 is of 1987 make, the Chassis number of the Jeep is CJ3B-4 DKxxxxx and engine number DJxxxxxx(x- being the numerals).

Specifications of M&M Model CJ340 DP 4 Wheel Drive:

Engine: Peugeot 2, 112 cc, XDP 4-90 Diesel
Max BHP: 62 @ 4500rpm
Max Torque:12.3 Kgm (89 lb.ft) @ 2000 rpm
Curb Weight (4WD): 2640Lbs/1200kgs
G.V.W: 2500Lbs/1590kgs
Axle Front: 4WD: Full floating hypoid type with 5.38 ratio
Axle Rear: Semi floating hypoid type with 5.38 ratio
Frame: Ladder type steel channel side members
Brakes: Service Hydraulic internal expansion non-servo floating shoes, 279.4 mm (11")
Parking: Mechanical operated on rear propeller shaft
Clutch: Single dry plate 23.5 cm(9 1/2") dia.
Suspension: Semi-elliptic, leaf type springs with hydraulic double acting telescopic shock absorbers.
Cooling: By water; Radiator fin and tube type pressurised cap 0.63 kg/sq cm(9 psi)
Fuel Tank: 40 Litre capacity
Electrical: 12 Volt, 22 Amps Generator/35 Amps Alternator
Instruments: Speedometer (km/h) Temperature & Fuel gauges, indicators for charging oil pressure, high beam & turn signal
Steering: Worm & roller type, right hand drive.
Turning radius: 5.3m (17-1/2')
Transmission: 4 Forward and one reverse, 2nd 3rd & 4th synchromesh
Gear ratios: 3.986:1, 1. 473:1, 1:1;
Reverse: 5.315:1
Transfer Case: Two speeds with ratio 2.46:1 and 1:1
Wheels and Tyres: 5 disc type 5-50x15 with F78x15, 6 ply- highway/Cross country

The M&M CJ340DP was sold under the names BAHIA and BUSHRANGER in overseas markets. The England vehicle was RHD and the France vehicle was LHD.

The M&M CJ340DP is the elder brother of M&M CL340DP 4WD Classic which was manufactured by Mahindra till 2000. The M&M CJ340 was made between 1987-1994.

Starting 1995 the CJ340 was renamed as CL340 with no other difference (the CJ initials are owned by Chrysler Group, the owner of the Jeep brand, who asked M&M to stop using it).

In late 1996, the CL340 underwent some modification and became Classic, including addition of disk-brakes, chrome plated 2 piece Front bull bar, Bucket seat with belts, rollover bar, etc.


Larry's Comment: Thanks for the extensive details on your very nice M & M CJ340.


Comments for My Mahindra CJ340 Jeep

Click here to add your own comments

Highway handling?
by: Mike

I notice you don't have real aggressive off road tires so I'm assuming you use your Jeep for a lot of highway driving.

My question is how does that diesel engine handle highway speeds and have you done any towing with it?

By the way it is a sweet looking Jeep, I have always been a fan of the CJ-3B body style no matter who built it.

Mike

Mahindra CJ 340 4X4
by: vikram

Hi! I own a Mahindra CJ 340 4x4 Jeep(1993 Model).I have maintained it well FOR THE LAST 17 YEARS and have not made too many modifications to the original structure .

It has had a paint job once but even that I got done in the MAHINDRA WORKSHOP.I have had to change some parts because of wear and tear. It is next to impossible to find genuine spares as MAHINDRA STOPPED manufacturing them a long time back.

I WANTED TO KNOW the MAX. SIZE/Width OF TUBELESS TYRES THAT I CAN FIT INTO THE 15 INCH ORIGINAL RIM, or will I have to go for new alloy wheels? I somehow prefer original white colored rims that came with the vehicle.

Kindly advise...

What is the engine?
by: Anonymous

If one were to buy CJ3B from Military auctions now, what would be its engine?

I want one!
by: Anonymous

Is it possible to get one in the U.S.?

My CJ340 Jeep
by: Andy

Hi Vikram,

Original rims will not be able to accommodate larger tires and it is best to leave it for NDMS tires. If at all you need to put larger tires,you will have to shift to alloy wheels. The rim width not being sufficient to mount larger tires will start pinching the tire edges thereby reducing the tire life.

Andy

Enquiry
by: sathya

Is the CJ 340 also called a Willys low bonnet?

Clutch
by: Anonymous

Hello,
I am looking for a clutch kit for my 1990 2.1 diesel. Is it still available in India?

SPARES AVAILABLE FOR ALL MODELS OF WILLYS AND MAHINDRA JEEPS
by: Anonymous

HELLO

IF YOU ARE LOOKING FOR ANY ITEM,PLEASE CONTACT US AT OUR E MAIL FOR SPARES OF MAHINDRA AND MAHINDRA JEEP OF ALL MODELS TILL TODAY.

E MAIL ID (regalautomobiles@yahoo.in)

WE WILL SHIP YOU YOUR REQUIRED ITEM,SOME TIME YOU HAVE TO WAIT FOR AVAILABILITY OF REQUIRED ITEMS.
FOR ANY QUERIES FEEL FREE TO CONTACT US.

THANKS
POSTAL ADDRESS.
REGAL AUTOMOBILES.
MAHBOOB GUNJ.
HYDERABAD.A.P.
INDIA---500012.

Disclaimer: The owner, editor, and anyone affiliated with 4-the-love-of-jeeps.com website does not endorse any claim for services unsolicited here or within the site. Contact at your own risk.

aus cjb340b
by: clem

Hi, I'm in Australia and I have a 1989 diesel CJ. It is a very nice machine that I'm doing some running repairs to. After doing 44,000 ks I am replacing front and rear wheel bearings and a new set of brake shoes. I have fitted 700x16 inch tyres and white steel rims and it travels well like this. Jeep parts do fit some items, but quite easy to get parts for. Cheers, happy motoring, and merry Christmas. Clem

Mahindra CJ 340 parts
by: Bruce

Does anyone know where I can buy spare parts for a 1990 CJ 340 sold as a Bushranger model?
