Jeep Transmission Quick Reference Guide

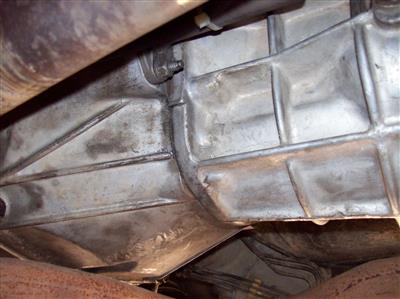

AX-15 Tranny



Which Jeep Transmission do you have? Is it manual or automatic?



Assuming your Jeep hasn't had a different transmission swapped into it, here are the original factory transmissions produced since 1945 (manuals) and 1963 (automatics).

MANUAL TRANSMISSIONS


Designation*

T90

T98

T14

T89

T15

T86cc

T86aa

T150

T18

T18a

T176

SR4

T4

T5

BA10

AX-4

AX-5

AX-15

NV35505

NSG3706
Forward Speeds*

three

four

three

three

three

three

three

three

four

four

four

four

four

five

five

four

five

five

five

six
Shifter Location*

column/floor

floor

floor

floor/column

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor

floor
Years Utilized

1945-1972

1955-1970

1967-1971

1963-1968

1970-1979

1967-1971

1967-1971

1976-1979

1971-1985

1976-1979

1980-1987

1980-1981

1982-1986

1982-1986

1987-1989

1987-1990

1987-1999

1989-1999

2000-2004

2005--

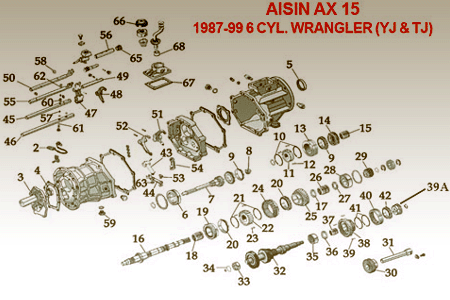

Jeep Transmission AX15 Exploded View

(Exploded View of an AX-15 Manual Transmission)



AUTOMATIC TRANSMISSIONS


Designation*

AS-8F

TH-400

727

999

904/909

AW30-40

42RE4

46RH

44RE4

46RE4

42RLE

45RFE

545RFE

W5A580

30RH

32RH
Forward Speeds*

three

three

three

three

three

four

four

four

four

four

four

five

five

five

three

three
Years Utilized

1963-1969

1965-1979

1980-1991

1982

1984-1986

1987-2001

1993-2004

1993-1995

1996-1998

1998

2003--

1999-2000

2001-2006

2006--

1992-1996

1992-2003



There you have it! A chronological history of transmissions for Jeeps (for you history buffs out there). Nearly every year new transmissions or improved older designs hit the market, and there is no reason to expect that currently available transmissions will not be discontinued at some point. However, hopefully there will be plenty of used re-buildable transmissions to supply our Jeeps as they age.

So remember...whether you are "shifty" or "shiftless"...keep on Jeepin' with pride.

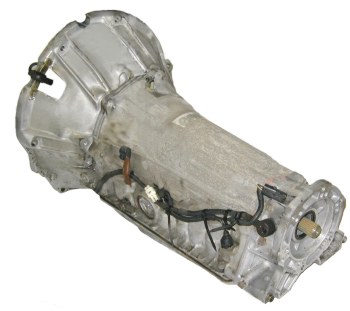

Jeep Transmission AW4

(AW4 Automatic Transmission)

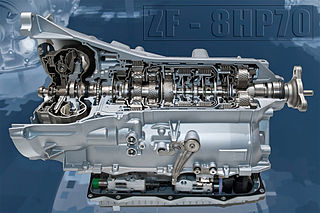

ZF 8HP 8-Speed Transmission

(ZF 8HP 8-Speed Automatic Transmission, 2014 Jeep Grand Cherokee)


See A Chronological History of Jeeps by Model
