Electric EJ1 Jeep

by John Norbeck
(Fairview TWP, Pennsylvania,USA)

EJ1. Electron

EJ1. Electron

EJ1. Electron

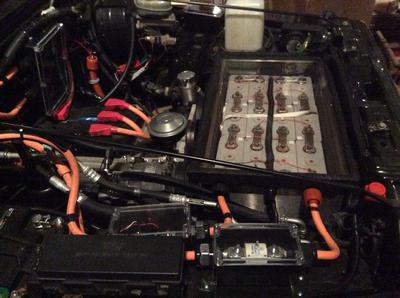

130v Lithium Ion batteries

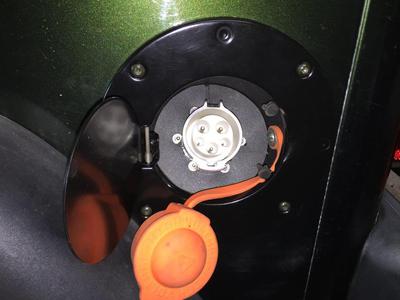

J1772 charging port
Bling LED around charging port

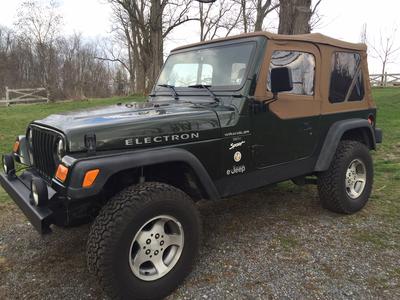

The Electron is a 1998 TJ that is fully electric. The drive train from the transmission back is all Jeep but the power comes from 130v lithium ion power pack. The motor is an HPEVS 80HP AC motor that puts out 180 ft/lbs of torque at 50 rpms. That is not a typo, 50 rpms. The torque curve is pretty flat up to around 3200 rpms.


I use it as a daily driver to and from work. To drive it, it feels like somewhere in-between a 4 cyl. and a 6 cyl. but I rarely have to use first gear. Generally I start out in second and go directly to fifth gear. Driving around town I put it in third and drive it like an automatic.

It has a belt drive on the front output shaft that runs the power steering pump, vacuum pump for power brakes and the AC compressor (which I never use). The range is 65 miles spring, summer and fall. In the winter, the range drops to somewhere in the high 50s. It can get pretty cold here and the batteries are not as efficient when they are cold.

It has been on the road for over 3 1/2 years. The only maintenance thus far has been replacing a Chinese made main fuse for a US made fuse and each Spring and Fall I check the tightness of the battery connections. That takes about 20 minutes.

It does have regenerative braking so my brakes get a light workout as the motor creates the resistance slowing the vehicle and charging the batteries at the same time.

Folks do ask how it performs off road. Well, it operates like a TJ on 31's with much more torque than the 6 cyl. However, I have a CJ that is my wheeling Jeep.

Editor's Comment: Very nice, John!

Comments for Electric EJ1 Jeep

Click here to add your own comments

Off-road torque
by: Brandon

Nice build! Silent and clean plus obscene amounts of torque, and off-roading makes so much sense.

More details!
by: Anonymous

Perfect for my wants (and needs). Do you have a write up of the conversion project, parts and costs? If not, it would be a great public service to do so.
